양나사보울트
>

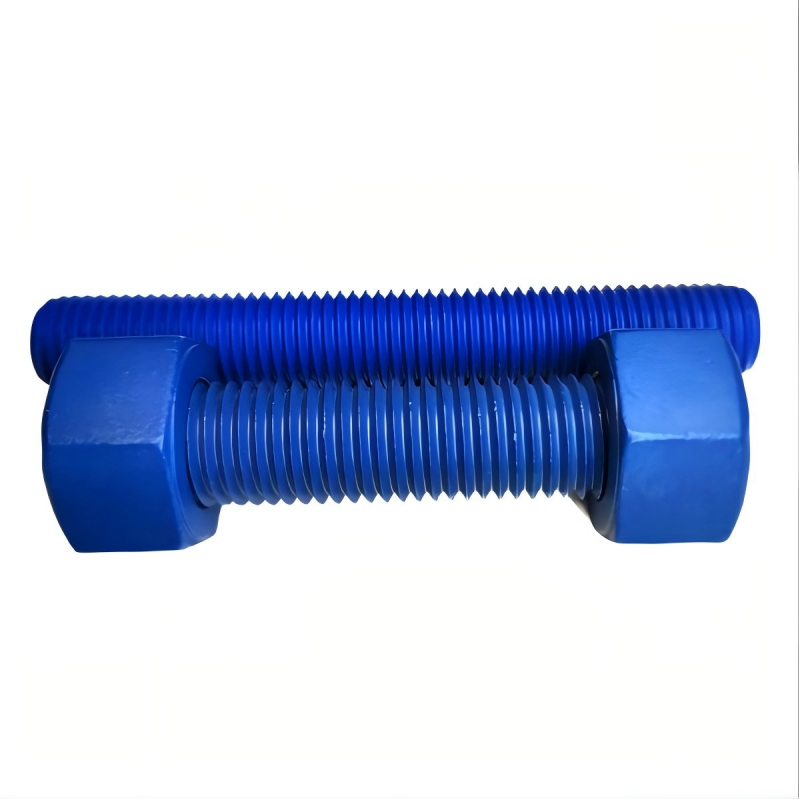

A193 B7 / A194 2H PTFE Coated Double Ended Bolt for Marine Petrochemical High Pressure High Temperature Applications

A193 B7 / A194 2H PTFE Coated Double Ended Bolt for Marine Petrochemical High Pressure High Temperature Applications

브랜드 이름: FLRS or OEM
모델 번호: FLRS-S025
MOQ: 1개 조각
가격: usd0.1-15 per pc
포장에 대한 세부 사항: carton/ 합판 상자 / 합판 팔레트
지불 조건: 전신환, L/C (신용장), 웨스턴 유니온, 페이팔
자세한 정보
원래 장소:
중국
인증:
ISO9001
이름:
스터드 볼트
재료:
A193 B7/ A194 2H
기준:
ANSI / ASME
마치다:
PTFE
실:
UNC
색상:
파란색
공급 능력:
60톤/월
제품 설명

A193 B7 / A194 2H PTFE Coated Double Ended Bolt for Marine Petrochemical High Pressure High Temperature Applications


XYLAN:

It is a registered trademark of high-performance fluoropolymer coatings manufactured by Whitford Corporation (USA). It is a PTFE-based anti-corrosion coating system. After proper surface pretreatment, the coating is sprayed onto metal substrates and thermally cured to form a protective film. It delivers outstanding metal protection featuring superior resistance to chemical corrosion and comprehensive functional advantages.

Data Sheet:

Standard ANSI/ASME
Size Standard & non-standard, customized
Material Carbon Steel, Stainless Steel and Alloy Steel
Grade A193 B7 / A194 2H
Thread UNC
Finish PTFE coating
Packing Bulk in cartons on wood pallet or according to customer special demand.
Application Structural Steel; Metal Buliding; Oil&Gas; Tower&Pole; Wind Energy; Mechanical Machine; Automobile:
Supply Ability About 60 tons per month
MOQ 50pcs
Trade Term FOB/CIF/CFR/EXW/DAP
Payment T/T,  L/C , Western Union


Picture:

A193 B7 / A194 2H PTFE Coated Double Ended Bolt for Marine Petrochemical High Pressure High Temperature Applications

A193 B7 / A194 2H PTFE Coated Double Ended Bolt for Marine Petrochemical High Pressure High Temperature Applications


Technical specifications:

Dry Film Thickness fasteners : 20-25microns
Structural Components : 20-30microns
Reduces make up torque:  70%
Coefficient of Friction:  0.08-0.11
Basecoat bond strength: 4000Psi
Topcoat Pencil hardness:  3-8H
Adhesion Standard :ASTM D3359:  4B,5B
Available Colors:Blue, Red, Yellow, Green
Operating Temperature Range:  -195℃ to +260℃
