ASME B18.3 Hexagon Socket Countersunk Head Screws in Monel K500 ASTM B865 K500 Alloy

브랜드 이름:	OEM
모델 번호:	FLRS-M001
MOQ:	200개
포장에 대한 세부 사항:	carton+plywood 케이스/팔레트
지불 조건:	L/C, D/P, T/T, 웨스턴 유니온

자세한 정보

제품 설명

자세한 정보

원래 장소:

ISO9001

스레드 유형:

UN, UNC, BSW

20일 이내

조립 내용:

너트, 와셔

헤드 유형:

육각형, 정사각형, T자형, 특수형

드라이버 유형:

1/4 -4

carton+plywood 케이스/팔레트

사용 가능

강철, 스테인리스강, 알루미늄, 황동, 플라스틱

강조하다:

ASME B18.3 Hexagon Socket Countersunk Head Screws

ASTM B865 K500 Countersunk Head Screws

Monel K500 Socket Head Screws

제품 설명

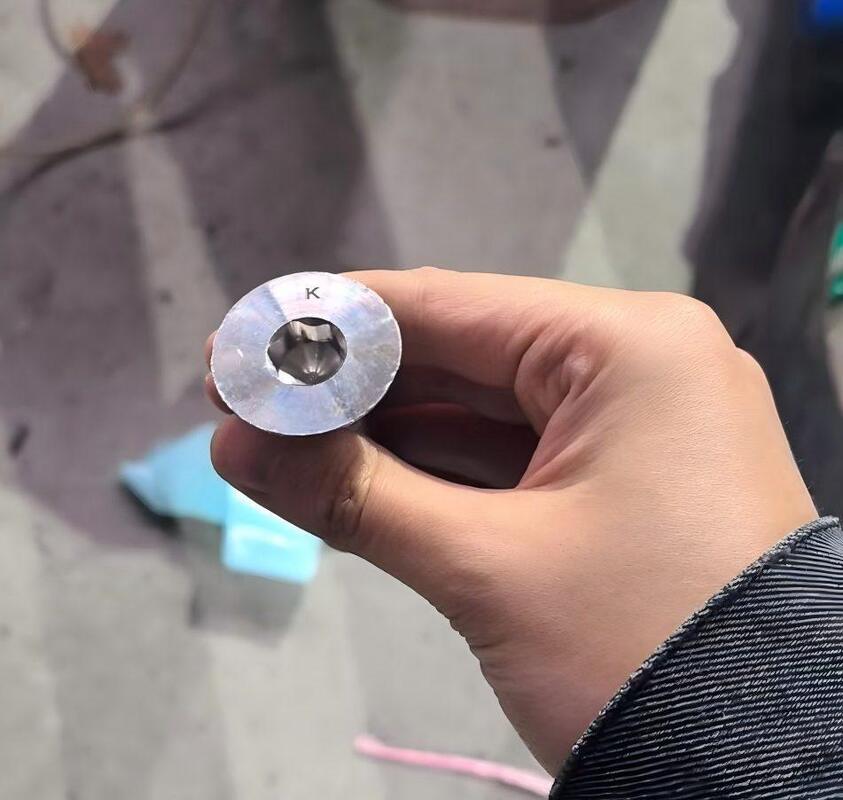

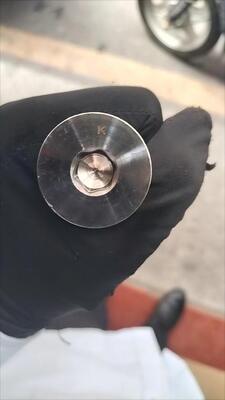

ASME B18.3 Hexagon Socket Countersunk Head Screws (ASTM B865 K500)

Shaanxi Flourish Industrial Co., Ltd. is a leading global supplier of high-performance fasteners, specializing in manufacturing ASME B18.3 hexagon socket countersunk head screws crafted from ASTM B865 Monel K500 alloy. These screws provide ultimate reliability for extreme industrial applications, combining ASME's rigorous dimensional precision with the exceptional strength and corrosion resistance of Monel K500. Backed by ISO-certified production and full material traceability, we deliver custom-engineered solutions that meet even the most demanding project requirements.

Product Overview

Our hexagon socket countersunk head screws adhere strictly to ASME B18.3 standards, featuring a flush-mount design that eliminates protrusions for smooth surfaces and enhanced safety. The Monel K500 alloy (UNS N05500, Werkstoff Nr. 2.4375) is a precipitation-hardened nickel-copper alloy, reinforced with aluminum and titanium to deliver three times the yield strength of conventional Monel 400. This unique combination makes the screws ideal for applications requiring both high load-bearing capacity and resistance to harsh corrosives.

Key Specifications

Category	Details
Standards	ASME B18.3 (dimensional), ASTM B865 / ASME SB865 (material)
Material Grade	Monel K500 (UNS N05500)
Sizes	Diameter: 6mm-120mm; Length: 0.5m-12m (custom lengths available)
Finish	Bright, polished, or black (custom surface treatments upon request)
Tolerances	Complies with K10, H11, H8 standards for precision fitting
Processing	Cold-worked, hot-forged, solution-annealed, CNC-machined

Material Properties (ASTM B865 K500)

Monel K500's exceptional performance stems from its optimized composition and mechanical characteristics:

Chemical Composition (min/max):

Ni (63.0%), Cu (27.0-33.0%), Al (2.3-3.15%), Ti (0.35-0.85%), Fe (≤2.0%), C (≤0.25%)

Mechanical Performance:

Tensile Strength: 1100 MPa (160,000 psi)
Yield Strength (0.2% offset): 790 MPa (115,000 psi)
Elongation: ≥20%
Density: 8.44 g/cm³
Melting Point: 1350°C (2460°F)

Corrosion Resistance:

Withstands seawater, acidic/alkaline media, and H₂S environments (corrosion rate <0.25mm/a), passing ASTM G28 A.

Core Advantages

Superior Durability: Precipitation-hardened alloy resists deformation under high pressure and temperature fluctuations.
Corrosion Immunity: Outperforms stainless steel in marine and chemical processing—ideal for offshore platforms and reactors.
Precision Fit: ASME B18.3 compliance ensures consistent dimensions for seamless integration with existing systems.
Versatile Machinability: Easy to weld, drill, and customize, supporting complex assembly requirements.

Applications

Our screws are trusted in industries where failure is not an option:

Offshore: Pump shafts, valve components, and subsea equipment
Chemical: Reactors, processing tanks, and pipeline fasteners
Aerospace: High-stress structural assemblies
Marine: Hull fittings and seawater-handling systems

Quality & Logistics

Quality Control: Raw material traceability, NACE MR0175/ISO 15156 compliance, and batch testing

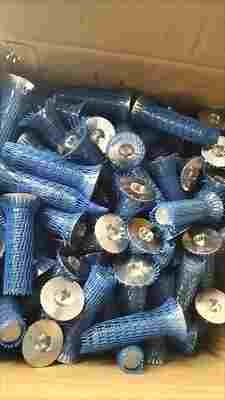

Packaging: Waterproof polybags + plywood crates for corrosion protection during transit
Lead Time: 10-45 days (expedited options available)
Payment Terms: L/C, T/T, Western Union

Elevate your project with fasteners engineered for extreme performance. Contact our team today for custom quotes, technical data sheets, or sample requests.

Your Reliable Partner for High-Performance Fasteners.
