Custom-made standard and non-standard nuts of various materials and specifications

브랜드 이름:	FLRS or OEM
모델 번호:	FLRS-N000
MOQ:	200 피스
가격:	USD0.01-10/ PC
포장에 대한 세부 사항:	carton/ 합판 상자 / 합판 팔레트
지불 조건:	L/C, T/T, 웨스턴 유니온

자세한 정보

제품 설명

자세한 정보

원래 장소:

ISO9001

탄소강, 스테인레스 스틸, 합금강

5, 8, 10

DIN, ISO, ASME

M2~M100

UNC, UN, UNF, BSW

아연 도금, 니켈 도금, 흑색 산화물, Dacromet, PTFE

청백색, 흰색, 노란색, 검정색, 은색, 회색, 파란색, 빨간색

사용 가능

사용 방법:

볼트 나 나사와 일치합니다

공급 능력:

10개 톤 / 달

강조하다:

custom-made standard nuts

non-standard nuts specifications

mechanical fasteners various materials

제품 설명

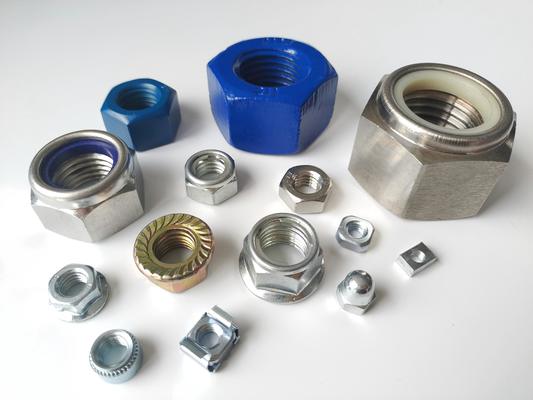

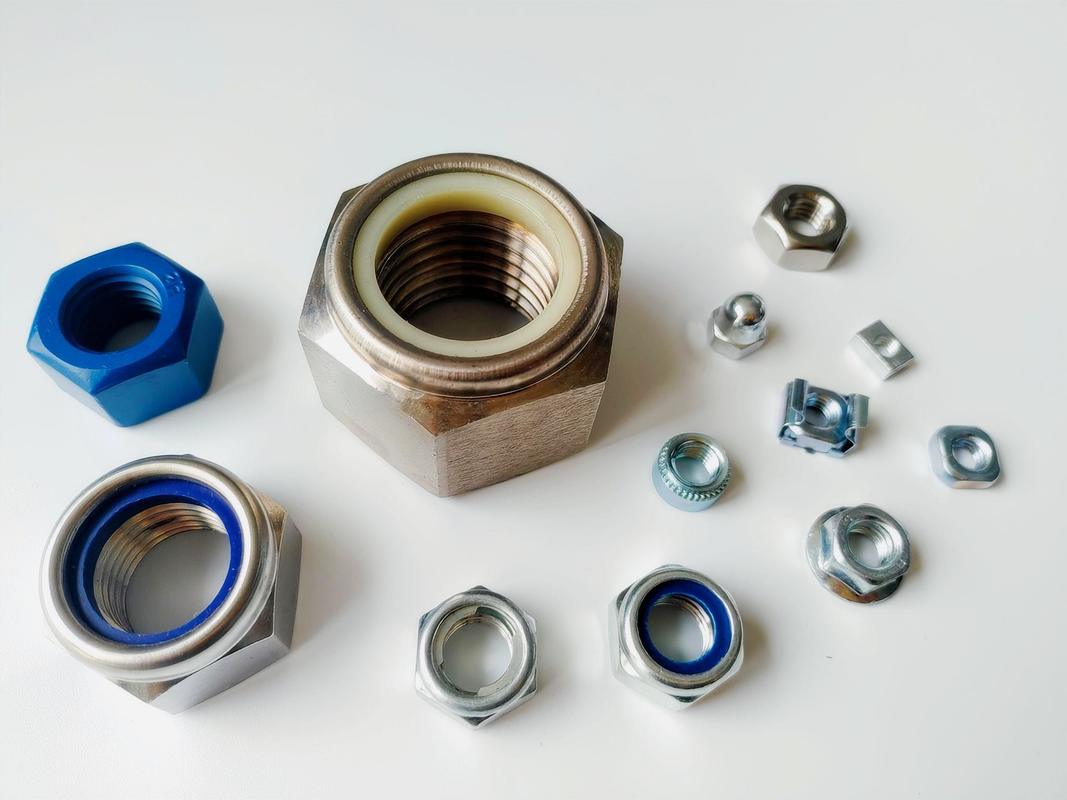

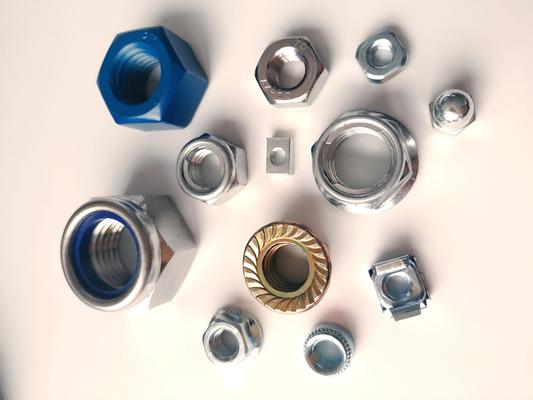

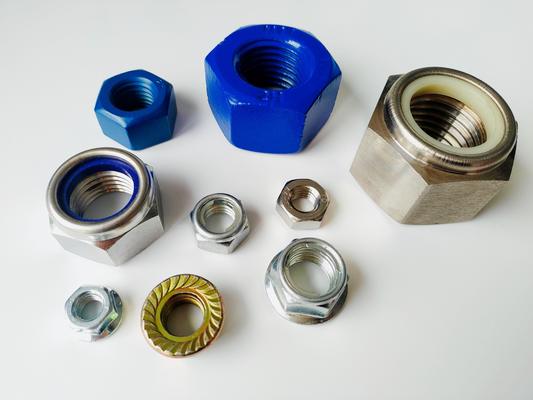

Custom-made Standard and Non-standard Nuts

We specialize in providing custom-made nut solutions covering both standard and non-standard categories, tailored to meet diverse industrial application needs. Our services support material customization, specification adjustment, and structural optimization to ensure optimal performance, compatibility, and environmental adaptability.

Standard Nuts (Customizable per International Standards)

We produce standard nuts strictly adhering to global industrial standards, with customizable parameters including material, surface treatment, and precision grade.

Metric System: Compliant with ISO (ISO 8673, ISO 4032), DIN (DIN 934, DIN 935), GB (GB/T 6170, GB/T 6172) standards
Imperial System: Conforming to ASME (ASME B18.2.2), ANSI (ANSI B18.2.2) standards
Typical Standard Types: Hexagonal nuts, slotted nuts, castellated nuts, flange nuts, lock nuts, and thin nuts

Non-Standard Nuts (Tailored to Special Requirements)

For scenarios where standard nuts fail to meet specific assembly, load, or space needs, we offer full-process non-standard customization.

Special Structures: Custom-shaped nuts, nuts with integrated washers/flanges, blind-hole nuts
Non-Standard Threads: Custom pitch, left-hand threads, trapezoidal threads, and buttress threads
Size Optimization: Ultra-small nuts, large-diameter nuts, and thin-walled nuts

Material Customization Options

Material Category	Typical Grades	Key Properties	Suitable Applications
Carbon Steel	1018, 1045, S45C	High tensile strength, good machinability, cost-effective	General industrial machinery, construction, automotive
Stainless Steel	304, 316, 316L	Excellent corrosion resistance, high temperature resistance	Marine equipment, food processing, medical devices
Alloy Steel	40Cr, 35CrMo, 42CrMo	High hardness, fatigue resistance, suitable for heavy loads	Automotive engines, wind turbines
Copper Alloy	Brass, Bronze	Good electrical conductivity, corrosion resistance	Electronic equipment, electrical connectors
Special Materials	Titanium Alloy, Inconel 625	Extreme high temperature resistance, corrosion resistance	Aerospace, high-end petrochemical equipment

Core Specification Ranges

Size Range: Inner diameter M1-M120 (metric), #0-80 to 4" (imperial)
Thread Precision: Class 4H-6H (metric), Class 2B-3B (imperial)
Mechanical Performance: Tensile strength 400 MPa-1200 MPa

Key Customization Dimensions

Surface Treatment: Zinc plating, galvanizing, Dacromet, electrophoretic coating
Structural Details: Customizable chamfer size, fillet radius, weight reduction grooves
Performance Requirements: High-temperature resistance, low-temperature resistance, anti-loosening performance

Core Customization Advantages

Full-demand coverage from standard size adjustments to unique non-standard designs
Strict quality control with material inspection, thread inspection, and performance testing
Fast response cycle with standard samples delivered within 3-5 working days
Professional technical support from our experienced engineering team

Customization Process

1. Demand Communication: Client requirements analysis and preliminary solutions

2. Program Design & Quotation: 2D/3D drawings and detailed quotation

3. Prototype Production & Testing: Dimensional and performance testing with reports

4. Mass Production & Delivery: Full-process quality monitoring and certified delivery

Typical Application Fields

Automotive & Transportation
Aerospace & Defense
Industrial Machinery
Electronics & Electrical
Construction & Infrastructure
